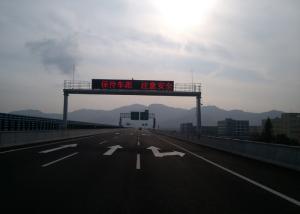

Traffic Portal Frame P20 Variable Message Boards , Outdoor Electronic Road Signs
Specifications:
| Technical Parameter |
LED TYPE |
SMD LED |
| Pixel Pitch |
20mm |
| Pixel Density |
2500 pixels/sqm |
| Pixel Configuration |
1R,1G,1B |
| Module Dimension |
160mm(H)X320mm(W) |
| Module Resolution |
8x16 Pixels |
| Cabinet Dimension |
960mmx960mmx210mm |
| Cabinet Resolution |
48x48 pixels |
| Cabinet material |
Aluninum alloy |
| Best Viewing Distance |
33m-300m |
| Gray scale |
8Bit/256evels |
| viewing angle |
V12°/H30° |
| Dimming Level |
32 |
| Luminance |
12400nits |
| Electric protection |
Overload protection and short circuit protection |
| Maintenance |
back access |
| Color |
Full-color |
| Max. power consumption |
300W/M² |
| Operating temperature |
-20℃-60℃ |
| Operating Relative |
Humidity:95%RH(Max.) |
Description:
1. Small spacing and high definition can display the picture clearly.
2. High brightness. The brightness can up to 6500 cd/㎡, if the direction is face to the sun, you still can see the images on the screen.
3. Full Variable Message Sign is one of the most common types of traffic signs.
4. No mosaic due to excellent flatness and nice uniformity of light-emitting,making the images softer and vivider.
5. Supports brightness adjustment and white balance custom adjustment with 256 levels, which enables mix usage of different batches of display.
6. High stability and long span.
Applications:
| road & bridge construction |
Competitive Advantage:
Variable message signs, or VMS, have been the key elements for dynamic traffic management. It ensures that the traffic situation, regardless o roadways and condition, can be controlled and maintained. Depending in a certain situation, these variable displays are designed to warn, inform, and guide motorists on the expressways and highways. For variable message signs manufacturers, it is very important to improve the technology of signal display to perfection with their own developments and following the set of standards with respect to LED-based variable message signs.
